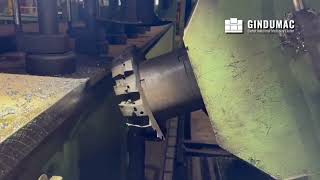

GRABENER metal milling machine
Kaiserslautern
If you decide to buy equipment at a low price, make sure that you communicate with the real seller. Find out as much information about the owner of the equipment as possible. One way of cheating is to represent yourself as a real company. In case of suspicion, inform us about this for additional control, through the feedback form.
Before you decide to make a purchase, carefully review several sales offers to understand the average cost of your chosen equipment. If the price of the offer you like is much lower than similar offers, think about it. A significant price difference may indicate hidden defects or an attempt by the seller to commit fraudulent acts.
Do not buy products which price is too different from the average price for similar equipment.
Do not give consent to dubious pledges and prepaid goods. In case of doubt, do not be afraid to clarify details, ask for additional photographs and documents for equipment, check the authenticity of documents, ask questions.
The most common type of fraud. Unfair sellers may request a certain amount of advance payment to “book” your right to purchase equipment. Thus, fraudsters can collect a large amount and disappear, no longer get in touch.
- Transfer of prepayment to the card
- Do not make an advance payment without paperwork confirming the process of transferring money, if during the communication the seller is in doubt.
- Transfer to the “Trustee” account
- Such a request should be alarming, most likely you are communicating with a fraudster.
- Transfer to a company account with a similar name
- Be careful, fraudsters may disguise themselves as well-known companies, making minor changes to the name. Do not transfer funds if the company name is in doubt.
- Substitution of own details in the invoice of a real company
- Before making a transfer, make sure that the specified details are correct, and whether they relate to the specified company.
Seller's contacts
+49 162 58...
Show
+49 162 5858448
Germany, Bühl-Weitenung
Germany, Bühl-Weitenung
Germany, Wiefelstede
Germany, Bühl-Weitenung
Germany, Bühl-Weitenung
Germany, Cologne
Germany, Bühl-Weitenung
Germany, Bühl-Weitenung
Germany, Kaiserslautern
Germany, Kaiserslautern
Germany, Kaiserslautern
Germany, Kaiserslautern
Germany, Kaiserslautern
Germany, Kaiserslautern
Location: DE
brand: GRABENER
Milling spindle swivel range: ±45°
Milling spindle drive power (DC motor): 50 kW
Spindle diameter at front bearing: 160 mm
Internal tool holder: ISO 50 (DIN 2079)
External tool holder: ISO 60
Tool clamping: manual via M24 threaded rod
Spindle speeds: infinitely variable, 2 ranges, 50–500 rpm
Range 1: 50–250 rpm
Range 2: 100–500 rpm
Stage increment: 1:2
Constant power range: 160 rpm
Max spindle torque: 2,000 Nm
Max spindle swivel speed: 2°/sec
Milling feed in X: 40–4,000 mm/min (infinitely variable)
Rapid traverse X: 8,000 mm/min
Adjustment speed Y/Z: 20–500 mm/min (infinitely variable)
Rapid traverse Y/Z: 1,000 mm/min
Display/positioning accuracy (3 axes): 0.1 mm
Operating voltage: 380 V, 50 Hz
Control voltage: 220 V
Clamping table to retracted, horizontal spindle axis: 500 mm
Cheek support (floor) to spindle center in vertical center position: 1,300 mm
Clamping table to center of support guide: 2,300 mm
Length of cheek and support guide: 16,800 mm
Spindle and tooling
Speeds and torque
Feeds
Accuracy
Electrical
Distances and dimensions
